The lifting body concept evolved in the late 1950s as researchers considered alternatives to ballistic reentries of piloted space capsules. The designs for hypersonic, wingless vehicles were on the boards at NASA Ames and NASA Langley facilities, while the US Air Force was gearing up for its Dyna-Soar program, which defined the need for a spacecraft that would land like an airplane.

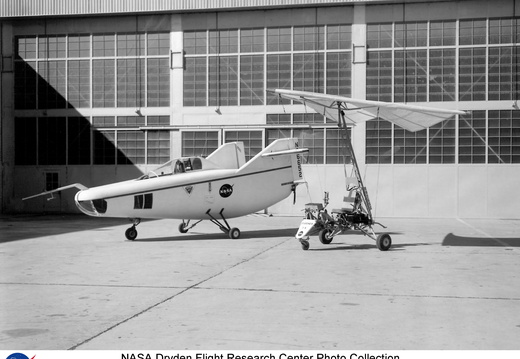

The success of Dryden's M2-F1 program led to NASA's development and construction of two heavyweight lifting bodies based on studies at NASA's Ames and Langley research centers -- the M2-F2 and the HL-10, both built by the Northrop Corporation. The "M" refers to "manned" and "F" refers to "flight" version. "HL" comes from "horizontal landing" and 10 is for the tenth lifting body model to be investigated by Langley.

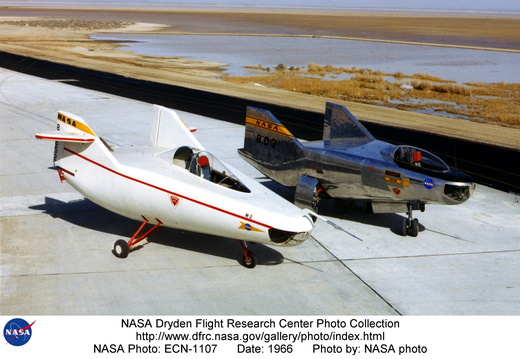

The first flight of the M2-F2 -- which looked much like the "F1" -- was on July 12, 1966. Milt Thompson was the pilot. By then, the same B-52 used to air launch the famed X-15 rocket research aircraft was modified to also carry the lifting bodies. Thompson was dropped from the B-52's wing pylon mount at an altitude of 45,000 feet on that maiden glide flight.

The M2-F2 weighed 4,620 pounds, was 22 feet long, and had a width of about 10 feet.

On May 10, 1967, during the sixteenth glide flight leading up to powered flight, a landing accident severely damaged the vehicle and seriously injured the NASA pilot, Bruce Peterson.

NASA pilots and researchers realized the M2-F2 had lateral control problems, even though it had a stability augmentation control system. When the M2-F2 was rebuilt at Dryden and redesignated the M2-F3, it was modified with an additional third vertical fin -- centered between the tip fins -- to improve control characteristics.

The M2-F2/F3 was the first of the heavy-weight, entry-configuration lifting bodies. Its successful development as a research test vehicle answered many of the generic questions about these vehicles.

NASA donated the M2-F3 vehicle to the Smithsonian Institute in December 1973. It is currently hanging in the Air and Space Museum along with the X-15 aircraft number 1, which was its hangar partner at Dryden from 1965 to 1969.

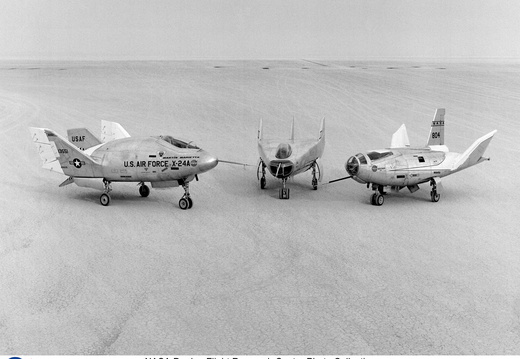

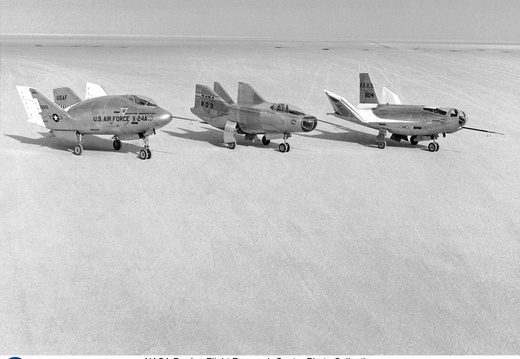

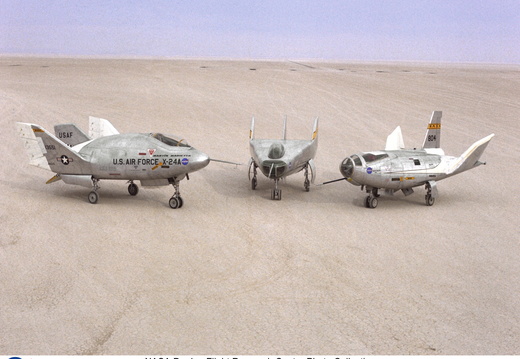

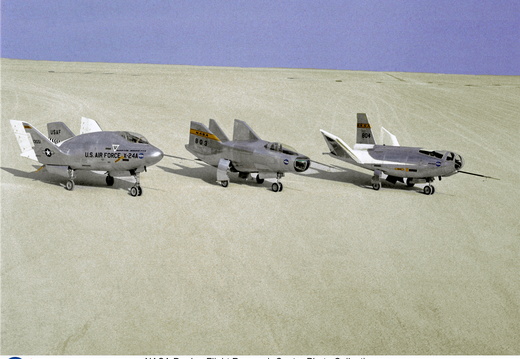

A fleet of lifting bodies flown at the NASA Flight Research Center (FRC--later the Dryden Flight Research Center), Edwards, California, from 1963 to 1975 demonstrated the ability of pilots to maneuver and safely land a wingless vehicle designed to fly back to Earth from space and be landed like an aircraft at a pre-determined site.

Aerodynamic lift--essential to flight in the atmosphere--was obtained from the shape of their bodies. The addition of fins and control surfaces allowed the pilots to stabilize and control the vehicles and regulate their flight paths.

The information the lifting body program generated contributed to the data base that led to development of today's space shuttle program.

The success of the FRC's M2-F1 program led to NASA's development and construction of two heavyweight lifting bodies based on studies at NASA's Ames and Langley research centers--the M2-F2 and the HL-10, both built by the Northrop Corporation. The "M" refers to "manned" and "F" refers to "flight" version. "HL" comes from "horizontal landing" and 10 is for the tenth lifting body model to be investigated by Langley.

The first flight of the M2-F2--which looked much like the "F1"--was on July 12, 1966. Milt Thompson was the pilot. By then, the same B-52s used to air launch the famed X-15 rocket research aircraft were modified to also carry the lifting bodies. Thompson was dropped from the B-52's wing pylon mount at an altitude of 45,000 feet on that maiden glide flight.

The M2-F2 weighed 4,620 pounds, was 22 feet long, and had a width of about 10 feet.

On May 10, 1967, during the sixteenth glide flight leading up to powered flight, a landing accident severely damaged the vehicle and seriously injured the NASA pilot, Bruce Peterson.

NASA pilots and researchers realized the M2-F2 had lateral control problems, even though it had a stability augmentation (control) system. When the M2-F2 was rebuilt by the Northrop Corporation with the cooperation of the FRC and redesignated the M2-F3, it was modified with an additional third vertical fin--centered between the tip fins--to improve control characteristics.

The M2-F2/F3 was the first of the heavy-weight, entry-configuration (i.e., configured for re-entry to the atmosphere from space) lifting bodies. Its successful development as a research test vehicle answered many of the generic questions about these vehicles.

NASA donated the M2-F3 vehicle to the Smithsonian Institute in December 1973. It is currently hanging in the Air and Space Museum along with the X-15 aircraft number 1, which was its hangar partner at Dryden from 1965 to 1969.

Pilots/Flights Bill Dana - 4 glide flights,15 powered flights Captain Jerry Gentry - 1 glide flight, 0 powered flights John Manke - 0 glide flights, 4 powered flights Major Cecil Powell - 0 glide flights, 3 powered flights
